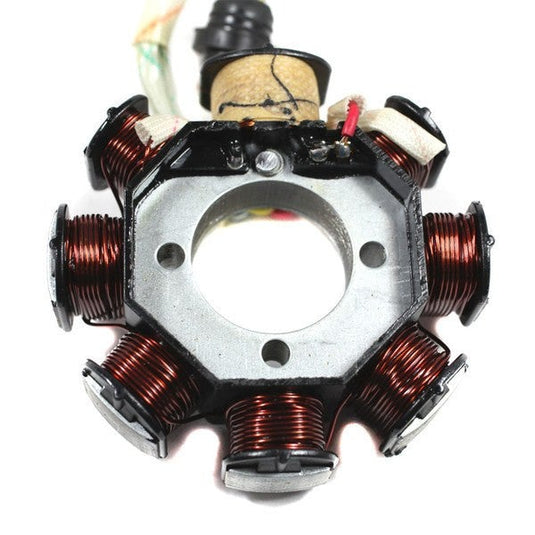

Stator Magneto - 8 Coil for Vertical 250cc (Version 11)

This Chinese stator magneto is the replacement part for many 4-stroke Chinese  ATVs and Dirt Bikes.  The stator recharges the battery while the machine is in use, like an alternator in a car.  This stator fits 200-250cc models with vertical engines.

Stator description:

• 8 coil - 1 wrapped
• 5 wires - 45cm [17.75"] overall length
• 3 bolt mounting
• Pick up trigger - 2 wire
• Center hole measurement: 32mm [1.26"]
• Overall measurement:  88.6mm [3.49"]
• Single coil height: 30mm [1.18"]
• Wrapped coil height: 31mm [1.22"]
• Mounting measurement: center-to-center across 40mm [1.575"]
• Mounting measurement: center-to-center diagonally 28.5mm [1.125"]
• Compatible with 200-250cc vertical with manual clutch
