Rear Go-Kart Disc Brake Caliper & Master Cylinder Assembly - Coleman CK100

REAR Disc Brake Caliper & Master Cylinder Assembly - Coleman CK100

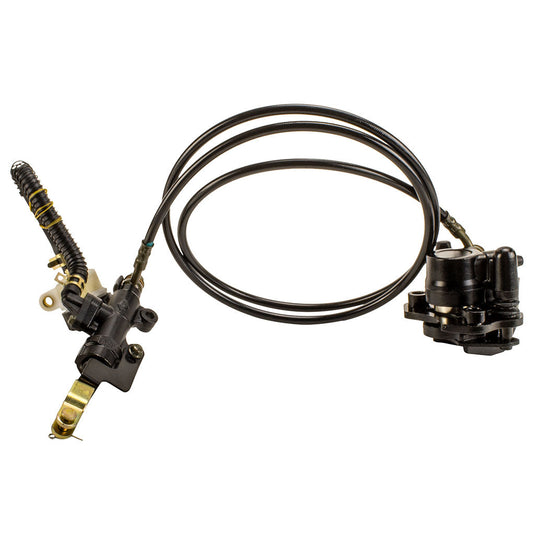

This Chinese rear brake assembly is the replacement part for the Coleman CK100 and Hisun GK100 go-karts. The assembly has the brake master cylinder, caliper, brake line hose and brake fluid reservoir.

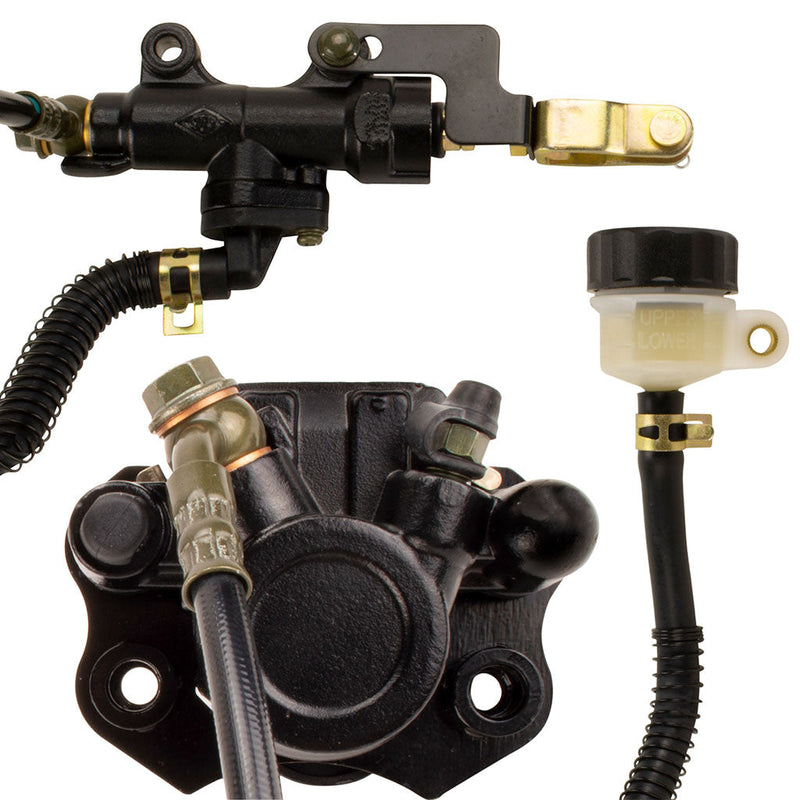

Master Cylinder description:

• Mounting holes on master cylinder are 45mm [1.8"] center-to-center apart
• Adjustable length piston with clevis and pin
• Reservoir mounts on the top
• Hose to reservoir is about 203mm [8"] long
• Shipped with brake fluid in reservoir
• Reservoir has metal reinforced mounting hole on side
• 44180-401001-0000 44007-401001-0000

Caliper details:

• Mounting holes are 63mm [2.48"] center to center apart
• Includes pads
• Includes bleeder screw
• 44310-401001-0000 44311-401001-0000

Hose is approximately 5' long. This is an OE assembly from Hisun.

SHOP NOTE: After changing the assembly, be sure to see if you need to bleed any air from the brake system to insure the caliper is working effectively.
