Rear Disc Brake Assembly for Coleman KT196 Go-Kart

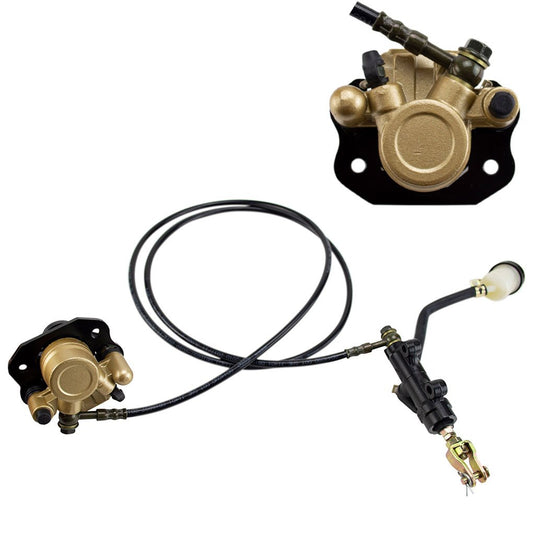

Replacement brake kit for the Coleman KT196 and Hisun GK200 go-karts.   Includes the brake master cylinder, caliper, brake line hose and brake fluid reservoir.

Master Cylinder:

• Mounting holes on master cylinder are 45mm [1.8"] center-to-center apart
• Adjustable length piston with clevis and pin
• Reservoir mounts on the top
• Hose to reservoir is about 188mm [7.5"] long
• Shipped with brake fluid in reservoir
• Reservoir has metal reinforced mounting hole on side

Caliper:

• Mounting holes are 65mm [2.5"] center to center apart
• Includes pads
• Includes bleeder screw

Hose is approximately 5.5' long.  This is an original assembly from Hisun.

Tech tip: After changing the assembly, be sure to see if you need to bleed any air from the brake system to ensure the caliper is working properly.
